| Model | Capacity | Pressure | Capacity | Noise | Weight | Dimension | |||
|
|
kW | HP | MPa | Psi | L/min | cfm | dB(A) | kg | mm |
| CMW2.2-0.8 | 2.2 | 3 | 0.2-0.8 | 29-116 | 255 | 9 | 49±3 | 132 | 665×630×940 |
| CMW3.7-0.8 | 3.7 | 5 | 0.2-0.8 | 29-116 | 415 | 15 | 52±3 | 150 | 660×665×990 |
| CMW4.4-0.8 | 2.2×2 | 6 | 0.2-0.8 | 29-116 | 510 | 18 | 52±3 | 150 | 800×670×1190 |
| CMW7.4-0.8 | 3.7×2 | 10 | 0.2-0.8 | 29-116 | 830 | 29 | 55±3 | 185 | 880×670×1190 |
| CMW11-0.8 | 3.7×3 | 15 | 0.2-0.8 | 29-116 | 1245 | 44 | 58±3 | 300 | 1400×800×1280 |
| CMW15-0.8 | 3.7×4 | 20 | 0.2-0.8 | 29-116 | 1660 | 59 | 61±3 | 350 | 1400×800×1280 |
| CMW18.5-0.8 | 3.7×5 | 25 | 0.2-0.8 | 29-116 | 2075 | 73 | 63±3 | 600 | 1400×800×1870 |
| CMW22-0.8 | 3.7×6 | 30 | 0.2-0.8 | 29-116 | 2490 | 88 | 63±3 | 650 | 1400×800×1870 |
| CMW2.2-1.0 | 2.2 | 3 | 0.2-1.0 | 29-145 | 215 | 8 | 49±3 | 132 | 665×630×940 |
| CMW4.5-1.0 | 4.5 | 6 | 0.2-1.0 | 29-145 | 410 | 14 | 52±3 | 150 | 660×665×990 |
| CMW4.4-1.0 | 2.2×2 | 6 | 0.2-1.0 | 29-145 | 430 | 15 | 52±3 | 150 | 800×670×1190 |
| CMW9-1.0 | 4.5×2 | 12 | 0.2-1.0 | 29-145 | 820 | 29 | 58±3 | 185 | 880×670×1190 |
| CMW13.5-1.0 | 4.5×3 | 18 | 0.2-1.0 | 29-145 | 1230 | 43 | 61±3 | 300 | 1400×800×1280 |
| CMW18-1.0 | 4.5×4 | 25 | 0.2-1.0 | 29-145 | 1640 | 58 | 61±3 | 350 | 1400×800×1280 |
| CMW22.5-1.0 | 4.5×5 | 30 | 0.2-1.0 | 29-145 | 2050 | 72 | 63±3 | 600 | 1400×800×1870 |
| CMW27-1.0 | 4.5×6 | 36 | 0.2-1.0 | 29-145 | 2460 | 87 | 63±3 | 650 | 1400×800×1870 |
| CMW3.0-1.2 | 3 | 5 | 0.2-1.2 | 29-174 | 210 | 7 | 49±3 | 132 | 665×630×940 |
| CMW4.5-1.2 | 4.5 | 6 | 0.2-1.2 | 29-174 | 360 | 13 | 52±3 | 150 | 660×665×990 |
| CMW6.0-1.2 | 3×2 | 8 | 0.2-1.2 | 29-174 | 420 | 15 | 52±3 | 150 | 800×670×1190 |
| CMW9-1.2 | 4.5×2 | 12 | 0.2-1.2 | 29-174 | 720 | 25 | 58±3 | 185 | 880×670×1190 |
| CMW13.5-1.2 | 4.5×3 | 18 | 0.2-1.2 | 29-174 | 1080 | 38 | 61±3 | 300 | 1400×800×1280 |
| CMW18-1.2 | 4.5×4 | 25 | 0.2-1.2 | 29-174 | 1440 | 51 | 61±3 | 350 | 1400×800×1280 |
| CMW22.5-1.2 | 4.5×5 | 30 | 0.2-1.2 | 29-174 | 1800 | 64 | 63±3 | 600 | 1400×800×1870 |
| CMW27-1.2 | 4.5×6 | 36 | 0.2-1.2 | 29-174 | 2160 | 76 | 63±3 | 650 | 1400×800×1870 |

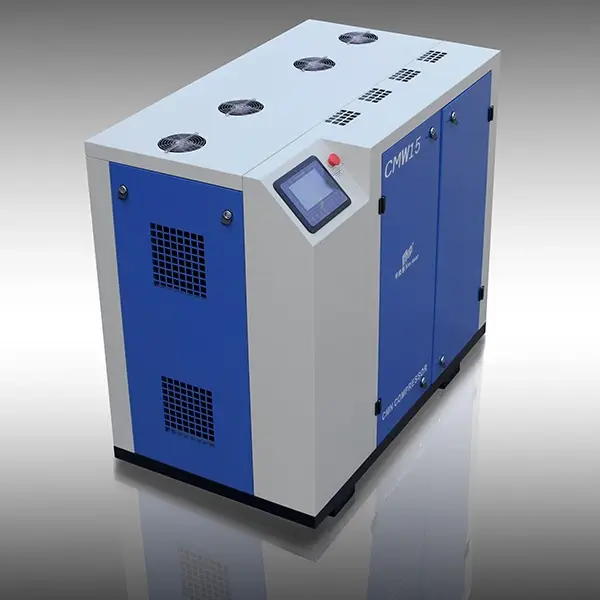

The CMN oilless scroll-style compressor is engineered to provide oil-free compressed air for a variety of applications for critical air purity. This oilless scroll-type compressor is suitable for industries such as medical, dental, food and beverage, pharmaceuticals, and electronics, where contamination-free air is essential.

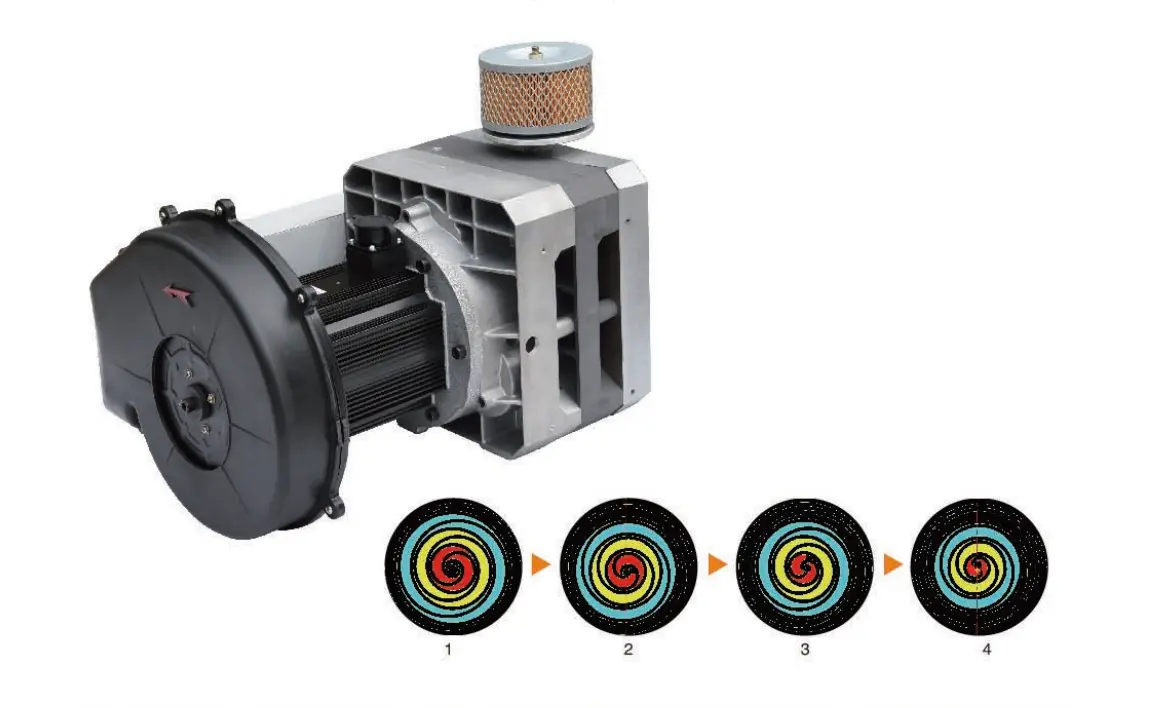

The compression process of the CMN oilless scroll air compressor is realized through the mutual movement of the static scroll and the dynamic scroll. The air enters from the side of the air end, and the dynamic scroll seals the compression chamber. With the movement of the dynamic scroll, the air is gradually compressed. The compressed air is discharged from the center of the static scroll. This process is repeated continuously, achieving a continuous and fluctuation-free output of compressed air.
High-precision, high-rigidity square design, ultra-long life, two-year warranty for the air end.
CMN oilless scroll type air compressor driven by a permanent magnet motor, energy consumption is reduced by more than 10%.
The motor is directly connected to the host, with no coupling, no belt, no adjustment, extremely low noise, and high efficiency.
Super silent: Simple and exquisite design, excellent structure, and advanced sound insulation cover can reduce noise to a minimum of 49 decibels.
